Calibration Targets

Lab-measured panels used to calibrate captured data in post processing

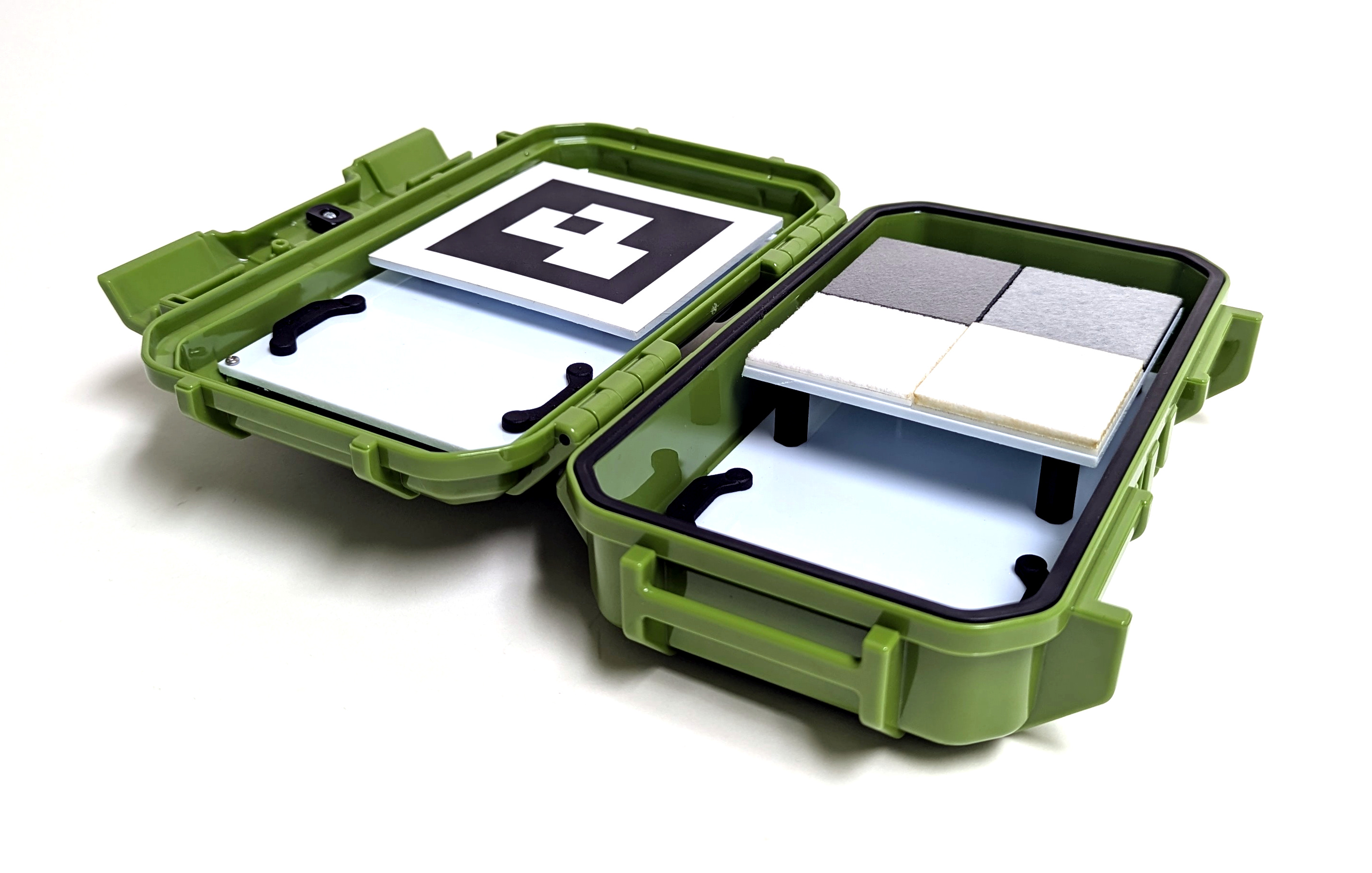

MAPIR offers our Reflectance Calibration Ground Target Package (V2) (seen above) which contains 4 panels that have been measured for reflectance from 350 - 1,100 nm.
The panels have the following reflectance curves, data download here:
Looking at the reflectance graph you can see that the values are wavelength (x-axis) versus reflectance percent (y-axis). When we capture an image of the calibration target we then create a relationship between pixel value and reflectance percent, within the spectrum that each of the camera's sensor bands are sensitive to.
This means that with every image you capture with our cameras, you can use a photo of the Reflectance Calibration Ground Target Package (V2) to calibrate the images for reflectance. Once calibrated each pixel in the further calibrated images equals a percent reflectance.
If you output the calibrated images in MCC as the typical JPG or TIFF then the reflectance percent is calculated by dividing the pixel value by the bit depth of the image format. So for JPG divide by 255, and for TIFF divide by 65,535. You can also choose the PERCENT format output in MCC, and then each pixel will range from a percent value of 0.0 to 1.0 (0% to 100% reflectance). Just keep in mind that some image applications cannot accept the percent (floating point) images.
Below you will find a non-calibrated 16-bit TIFF image of our target captured by our MAPIR Survey3W RGN camera, with the addition of the 4 colored regions over the targets added by the processing in MCC during reflectance calibration. We have added green call-out overlays highlighting the target region average pixel values and some low/high vegetation points. We have also brightened the image to make it easier to view here.
Here is a download link to the working files below. You can try them in MCC yourself.
Image brightness was increased for easier viewing, pixel data was not changed

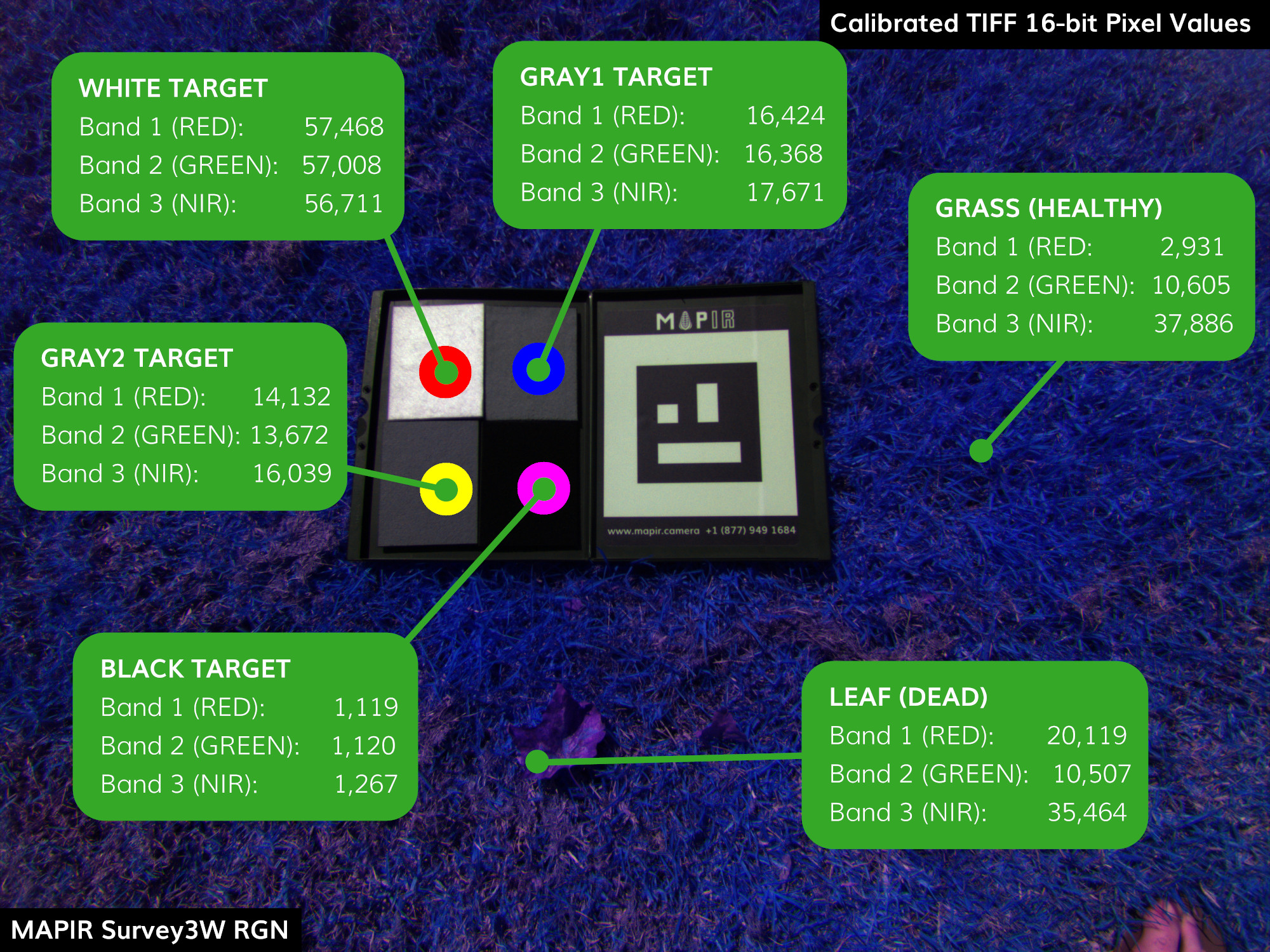

Processing the image in MCC for reflectance calibration we obtain the following calibrated image, with updated pixel values:

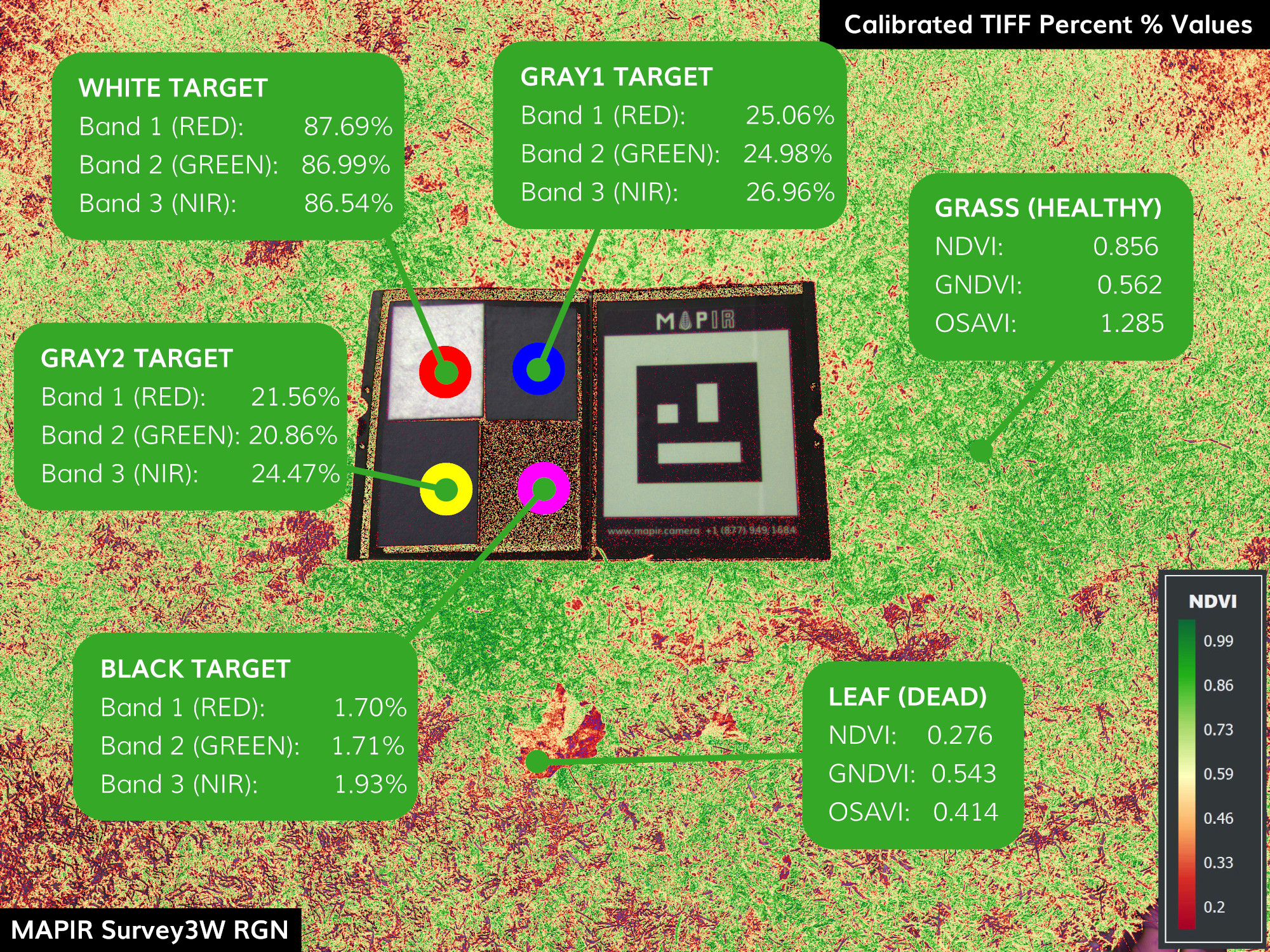

Converting to percent reflectance by dividing by the pixel bit-depth (65,535) we obtain:
Once the image is calibrated we can perform some raster math with the pixels in each of the image bands/channels. For the vegetation we can process various indices like NDVI, GNDVI, OSAVI, etc. For the NDVI index a value of 0.85 means the vegetation is likely very healthy. A NDVI value of 0.28 typically means low to no health (dead) vegetation. You can see some example indices below.
Below are the unlabeled, reflectance calibrated, LUT index images from our MAPIR Survey3W RGN:
MAPIR Survey3W RGN - NDVI
MAPIR Survey3W RGN - GNDVI
MAPIR Survey3W RGN - OSAVI
